One Box Universal Concealed Part ONE BOX_ZB00B031
Model
ZB00B031
One Box Universal Concealed Part,for 1 o 2 o 3 outlet thermostatic or single lever,without trim kit,with noise reducers,with sealing gasket
Available Finishings
Technologies
Thermostatic
The Huber thermostatic is your personal water manager, helping you to handle, control and save water and energy.
Characteristic
Concealed: 1
Installation: Concealed
Waterflow
ZB00B031
| Pressure | Water Mix 1(l/min) | Water Mix 2(l/min) | Water Mix 3(l/min) |
|---|---|---|---|
| 1 Bar | 12.5 | 11.2 | 10.8 |
| 2 Bar | 18.1 | 16.1 | 15.5 |
| 3 Bar | 22.4 | 19.8 | 19.3 |
| 4 Bar | 25.9 | 23.1 | 22.3 |
| 5 Bar | 29 | 25.5 | 25 |

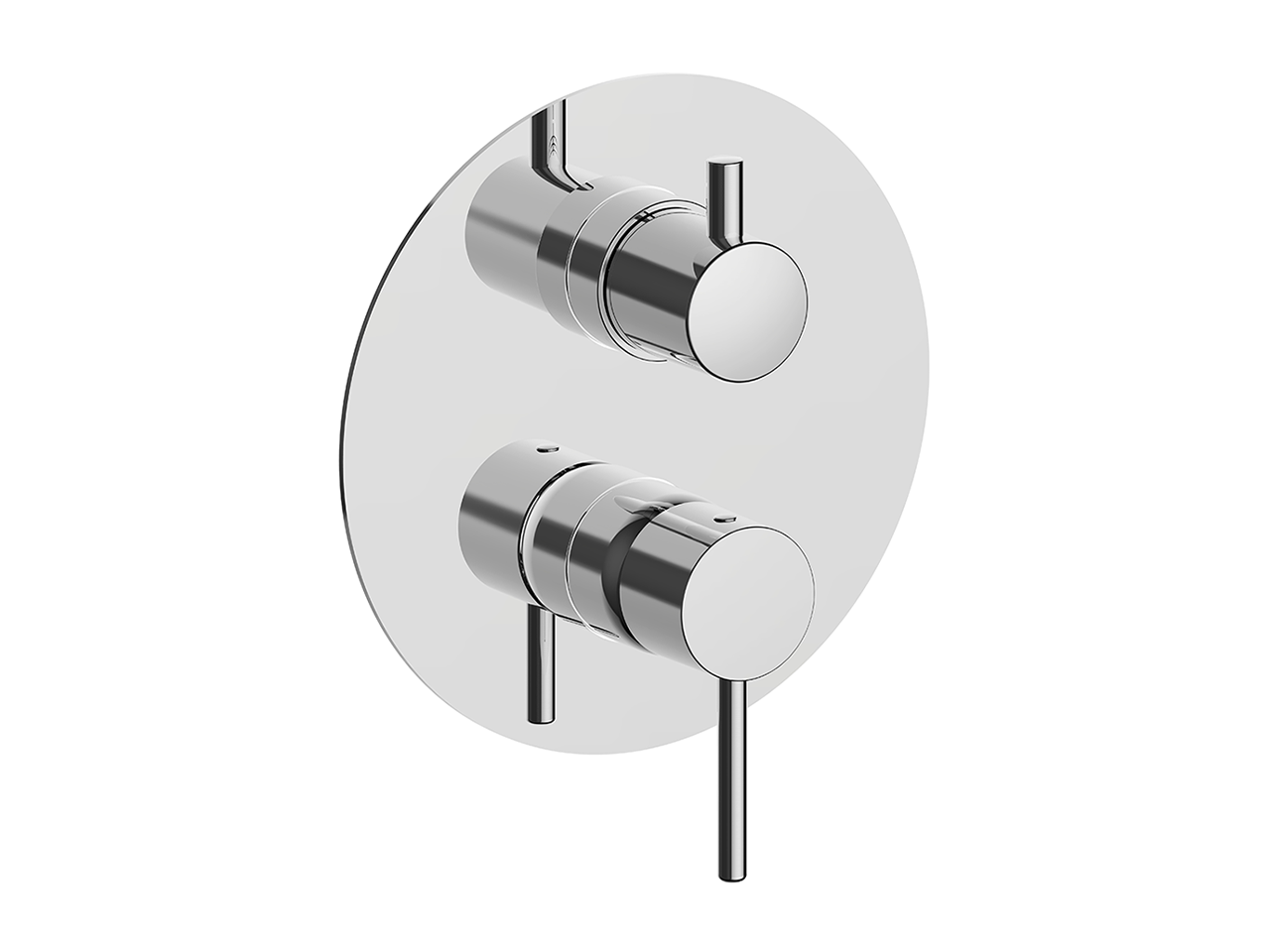

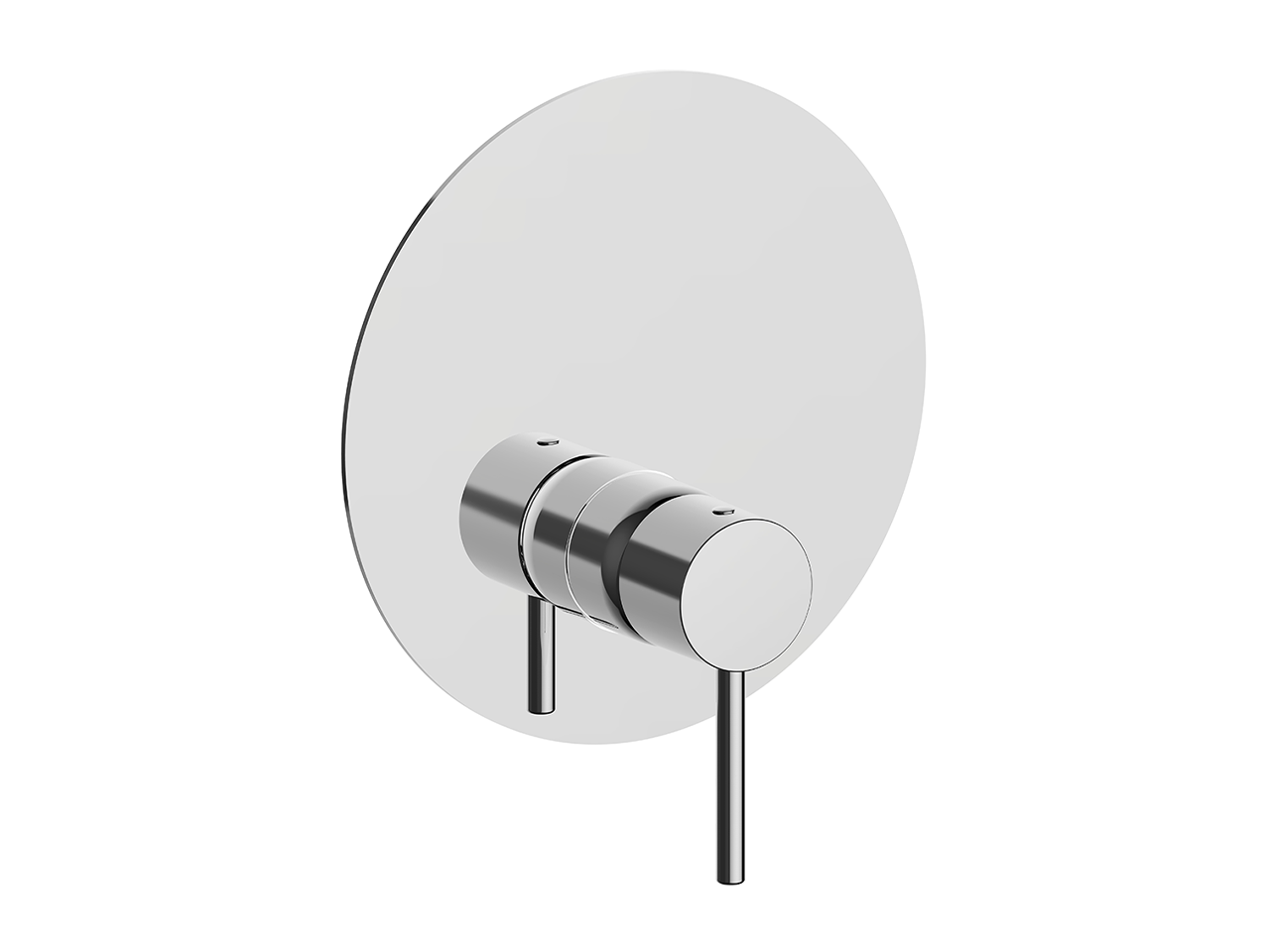

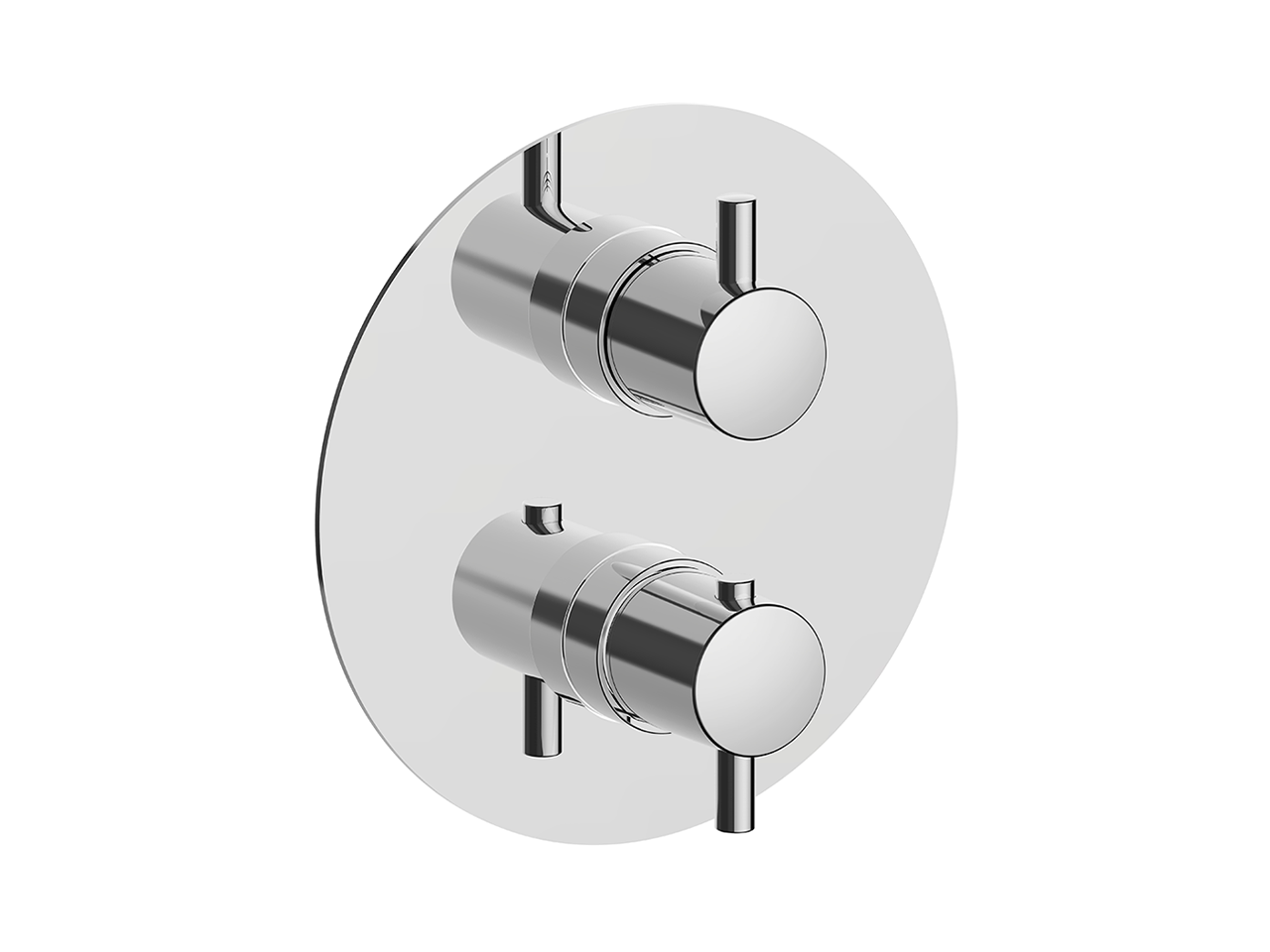

External Parts
External parts usable with current element
