One box
Exposed part for Single Lever One Box Valve ONE BOX_SF0BM010
Model
SF0BM010

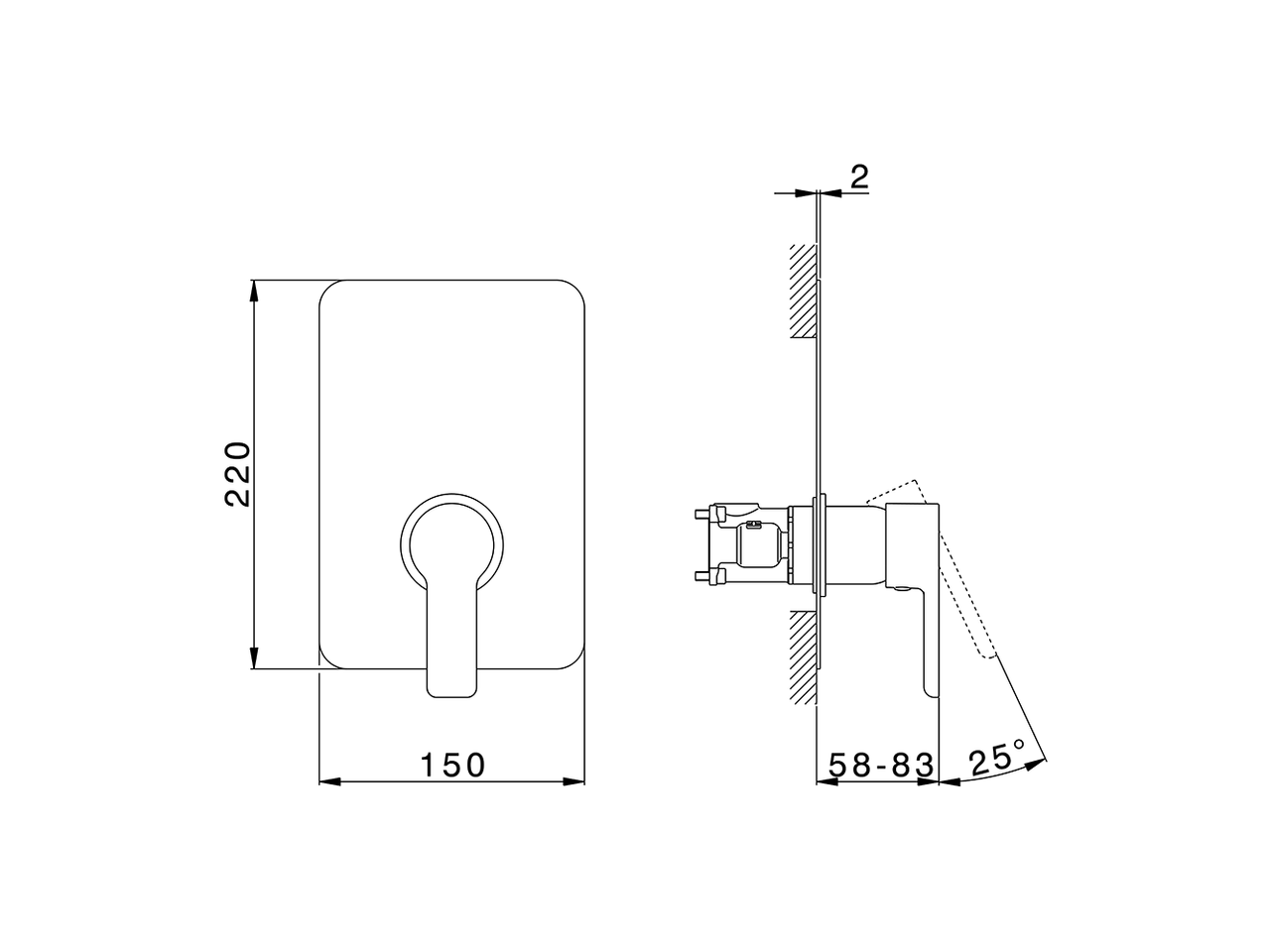

Exposed part for Single Lever One Box Valve,1 Outlet,Minimum depth of installation: 67 mm,without concealed part,for items ZB00B030-ZB00B031
Available Finishings
Technologies
Characteristic
Cartridge Spare Parts: ZZ97179000
Cartridge Name: 35 mm Cartridge
Installation: Concealed
Waterflow
SF0BM010
| Pressure | Water Mix 1(l/min) |
|---|---|
| 1 Bar | 11.3 |
| 2 Bar | 16 |
| 3 Bar | 20.1 |
| 4 Bar | 22.9 |
| 5 Bar | 25.5 |
Concealed Parts
Concealed parts required for installation.
