One box

Exposed part for Single Lever One Box Valve ONE BOX_AH0BM030

Model

AH0BM030

Exposed part for Single Lever One Box Valve,with 2-3 outlet diverter,Minimum depth of installation: 67 mm,without concealed part,for items ZB00B030-ZB00B031

Available Finishings
Exposed part for Single Lever One Box Valve ONE BOX_AH0BM030 - v1
Technologies
Characteristic

Cartridge Spare Parts: ZZ97179000

Cartridge Name: 35 mm Cartridge

Installation: Concealed

Technical Specifications
AH0BM030
Exposed part for Single Lever One Box Valve ONE BOX_AH0BM030 - v1

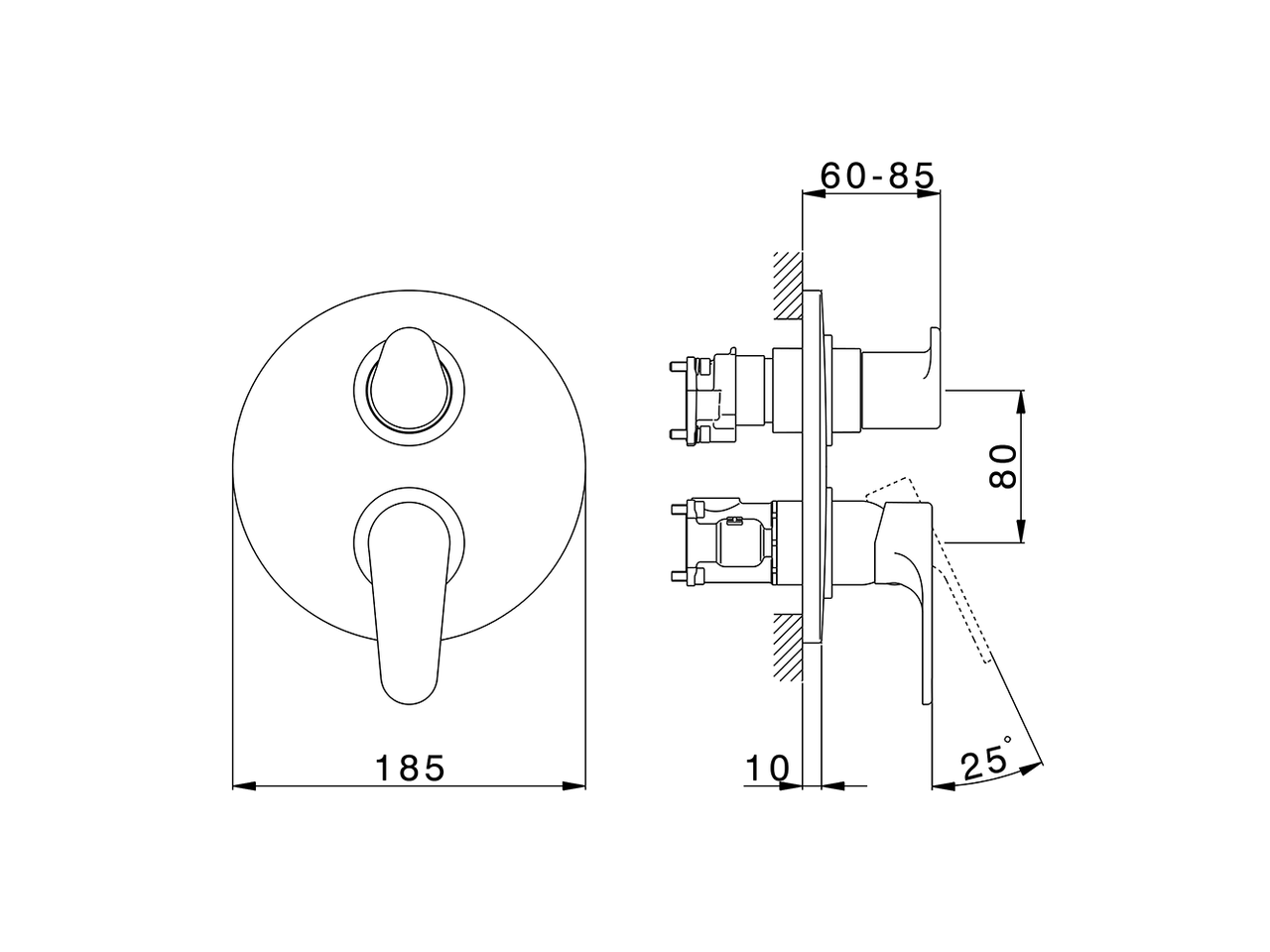

Files 2D
Spareparts
Instructions
Waterflow
AH0BM030
Pressure Water Mix 1(l/min) Water Mix 2(l/min) Water Mix 3(l/min)
1 Bar 11.3 10.5 10.5
2 Bar 16 14.8 14.8
3 Bar 20.1 18.5 18.5
4 Bar 22.9 21.2 21.2
5 Bar 25.5 23.6 23.6
Design

HuberLab
