2-outlet Concealed thermostatic shower valve CONCEALED_ZB018101
Model
ZB018101
2-outlet Concealed thermostatic mixer,with 2-outlet diverter,without trim kit
Available Finishings
Technologies
DeviaStop
The Huber Devia Stop technology allows to adjust the water flow and to direct it to the selected output point (overhead soaker, hand shower, etc).
Thermostatic
The Huber thermostatic is your personal water manager, helping you to handle, control and save water and energy.
Characteristic
Installation: Concealed
Cartridge Spare Parts: 24.04A.PP
Cartridge Name: 8x20 Plus P Thermostatic Valve
Concealed: 1
Waterflow
ZB018101
| Pressure | Shower(l/min) | Bath(l/min) |
|---|---|---|
| 1 Bar | 13 | 14 |
| 2 Bar | 18 | 20 |
| 3 Bar | 22 | 24 |
| 4 Bar | 26 | 28 |
| 5 Bar | 28 | 31 |

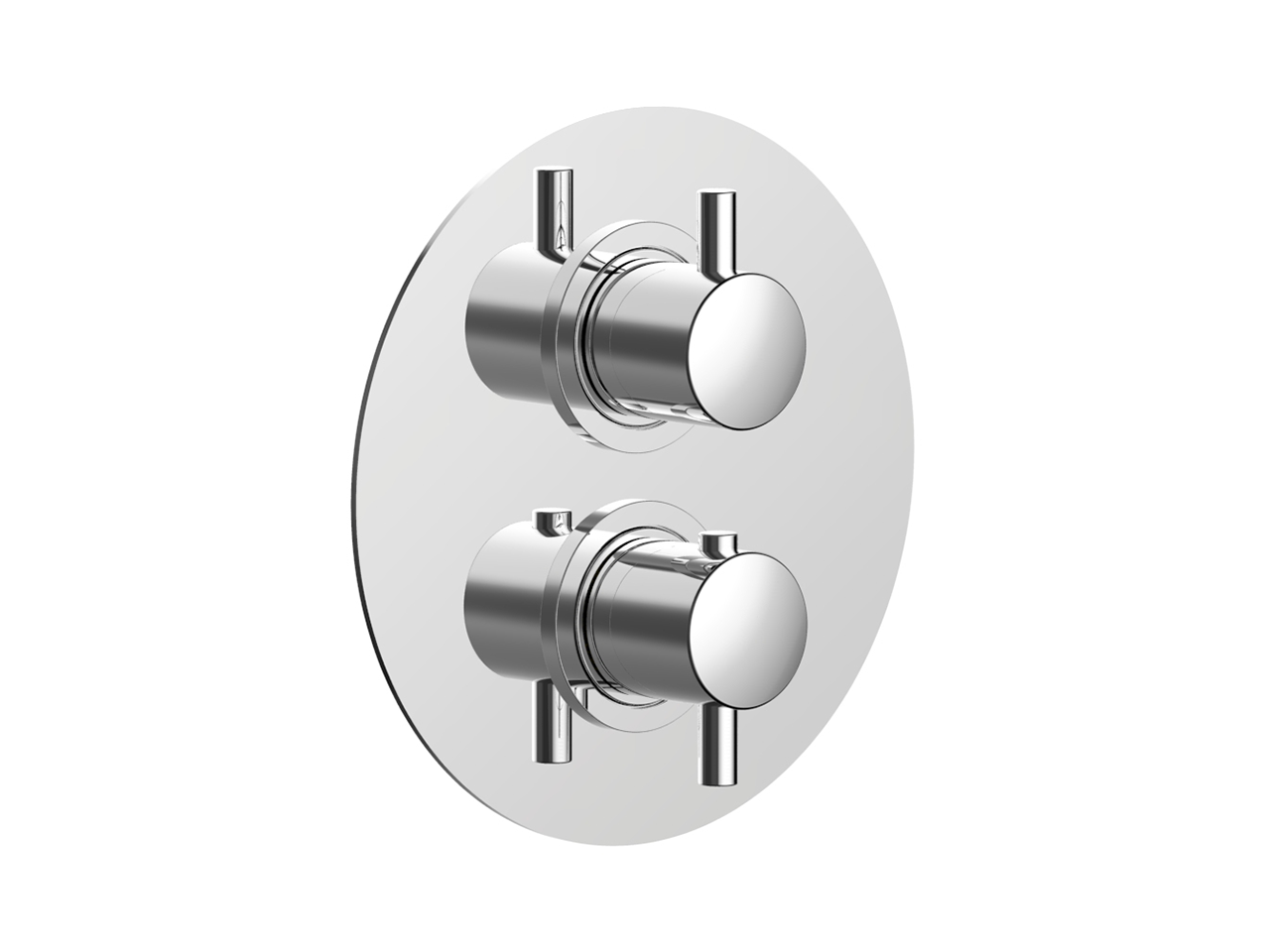

External Parts
External parts usable with current element
