Single lever washbasin mixer " large " EnergySave H2_H2000505

Model

H2000505

Single lever washbasin mixer " large " EnergySave,without automatic pop-up waste,G.3/8" stainless steel flexible hoses

Available Finishings
Single lever washbasin mixer
Technologies
DeviaStop

DeviaStop

The Huber Devia Stop technology allows to adjust the water flow and to direct it to the selected output point (overhead soaker, hand shower, etc).

EnergySave

EnergySave

Thanks to the EnergySave device, only cold water will be drawn if the lever is operated in the central position, so that the water heater will not be engaged and no hot water wasted, leading to considerable savings in energy and costs. The temperature can be adjusted by rotating the lever to the left, until the desired temperature is reached.

Characteristic

Cartridge Spare Parts: ZZ96800000

Cartridge Name: 35 mm Cartridge

Technical Specifications
H2000505
Single lever washbasin mixer

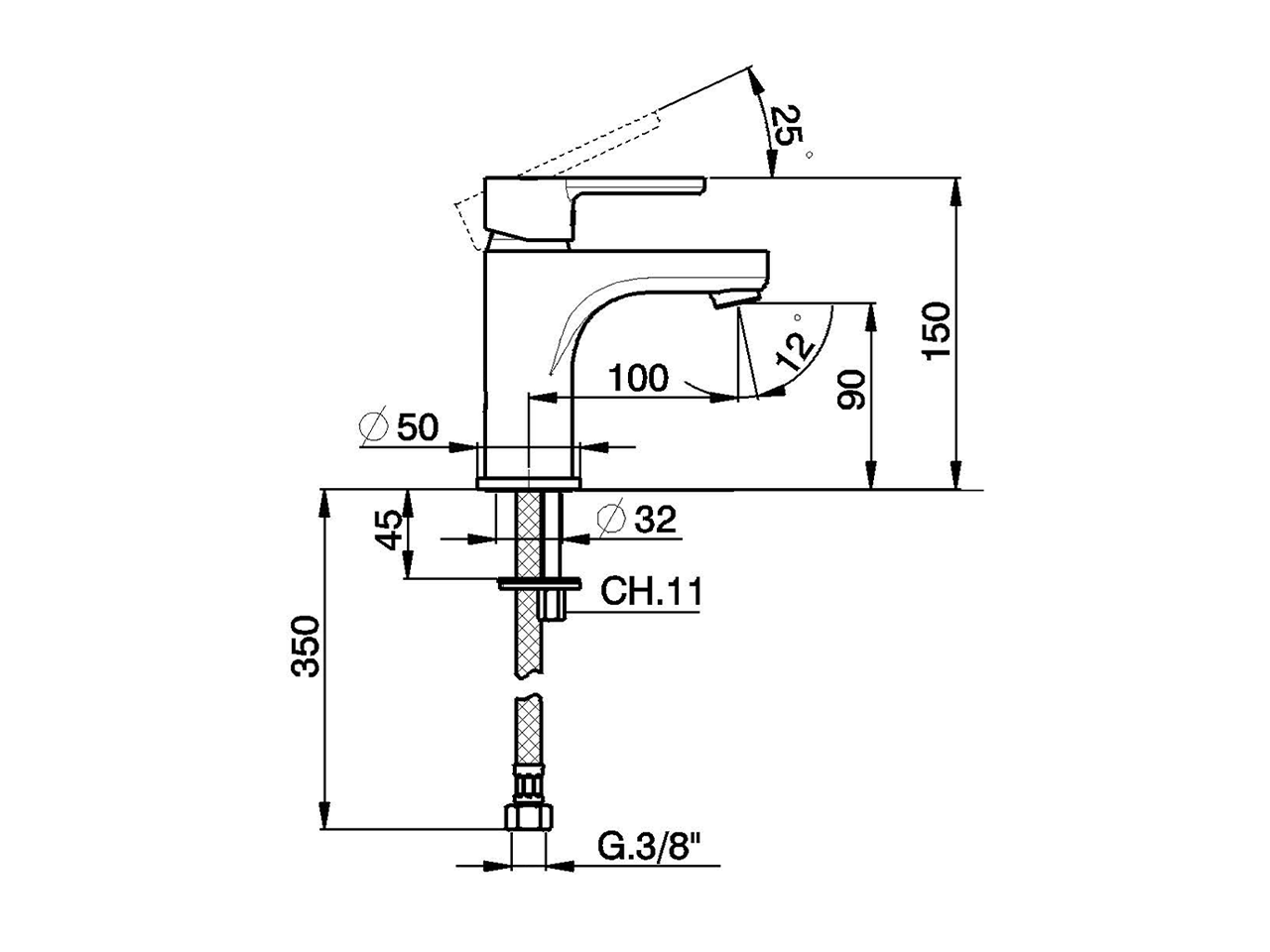

Files 2D
Instructions
Waterflow
H2000505
Pressure Water Mix(l/min)
1 Bar 7.1
2 Bar 10.2
3 Bar 12.5
4 Bar 14.7
5 Bar 16.4
Design

HuberLab
