H3

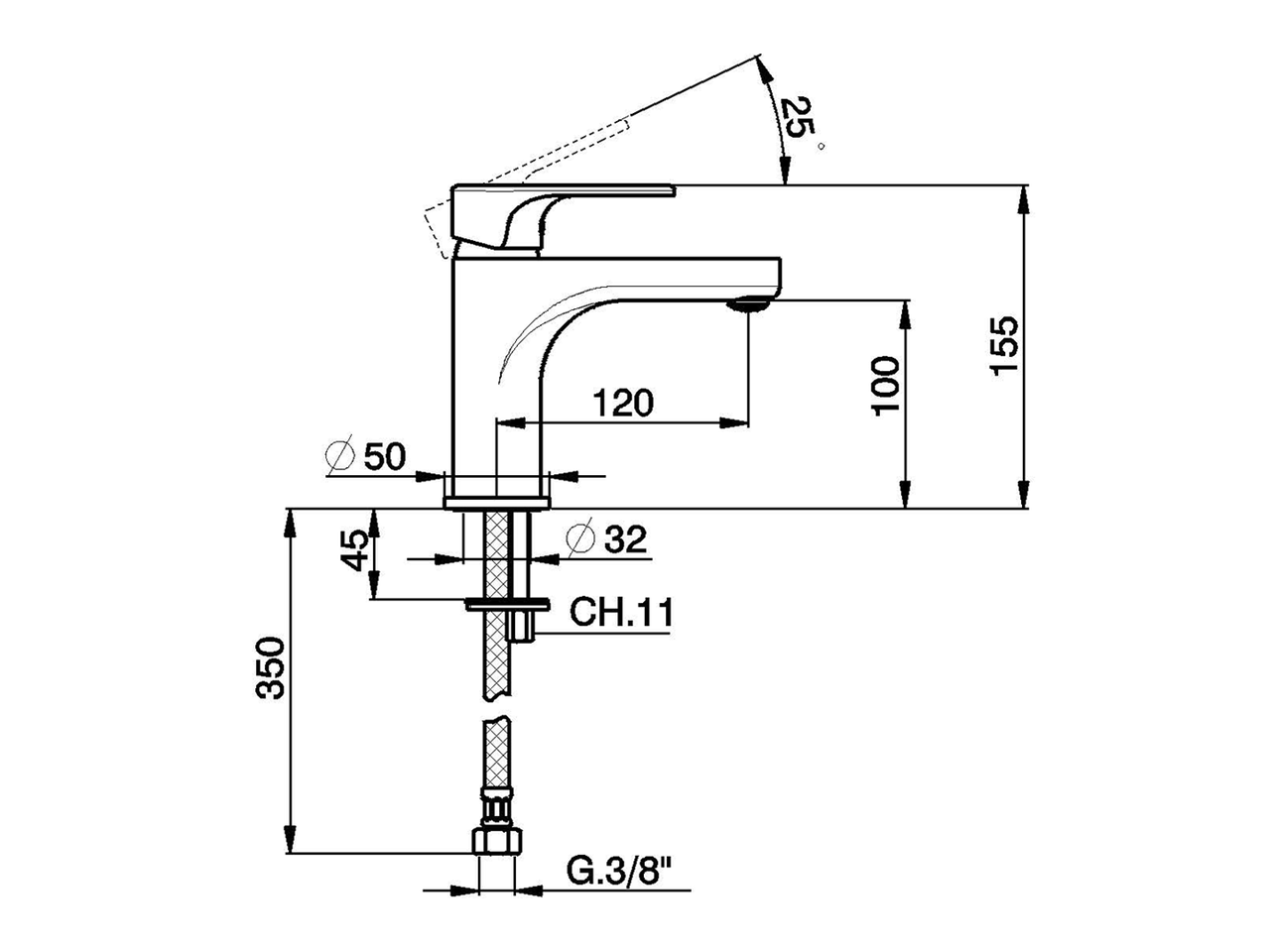

Single lever 'large' washbasin mixer H3_AH000500
Model
AH000500
Single lever 'large' washbasin mixer,without waste,G.3/8" stainless steel flexible hoses
Available Finishings
Technologies
EcoStop
EcoStop feature limits water flow to approximately 50% of maximum output with one point of resistance on setting. Push slightly past the middle stop only when full water output is required. This will save water up to 50%.
Characteristic
Cartridge Spare Parts: ZZ95435000
Cartridge Name: 35 mm Cartridge
Waterflow
AH000500
| Pressure | Water Mix(l/min) |
|---|---|
| 1 Bar | 6.8 |
| 2 Bar | 10.3 |
| 3 Bar | 12.7 |
| 4 Bar | 14.7 |
| 5 Bar | 16.7 |
