Concealed single lever washbasin mixer Easy-Box CONCEALED_ZB002450

Model

ZB002450

Concealed single lever washbasin mixer Easy-Box,with protection guard box,without trim kit

Available Finishings
Concealed single lever washbasin mixer Easy-Box CONCEALED_ZB002450 - v1
Technologies
EcoStop

EcoStop

EcoStop feature limits water flow to approximately 50% of maximum output with one point of resistance on setting. Push slightly past the middle stop only when full water output is required. This will save water up to 50%.

Characteristic

Concealed: 1

Cartridge Spare Parts: ZZ95409000

Cartridge Name: 35 mm Cartridge

Technical Specifications
ZB002450
Concealed single lever washbasin mixer Easy-Box CONCEALED_ZB002450 - v1

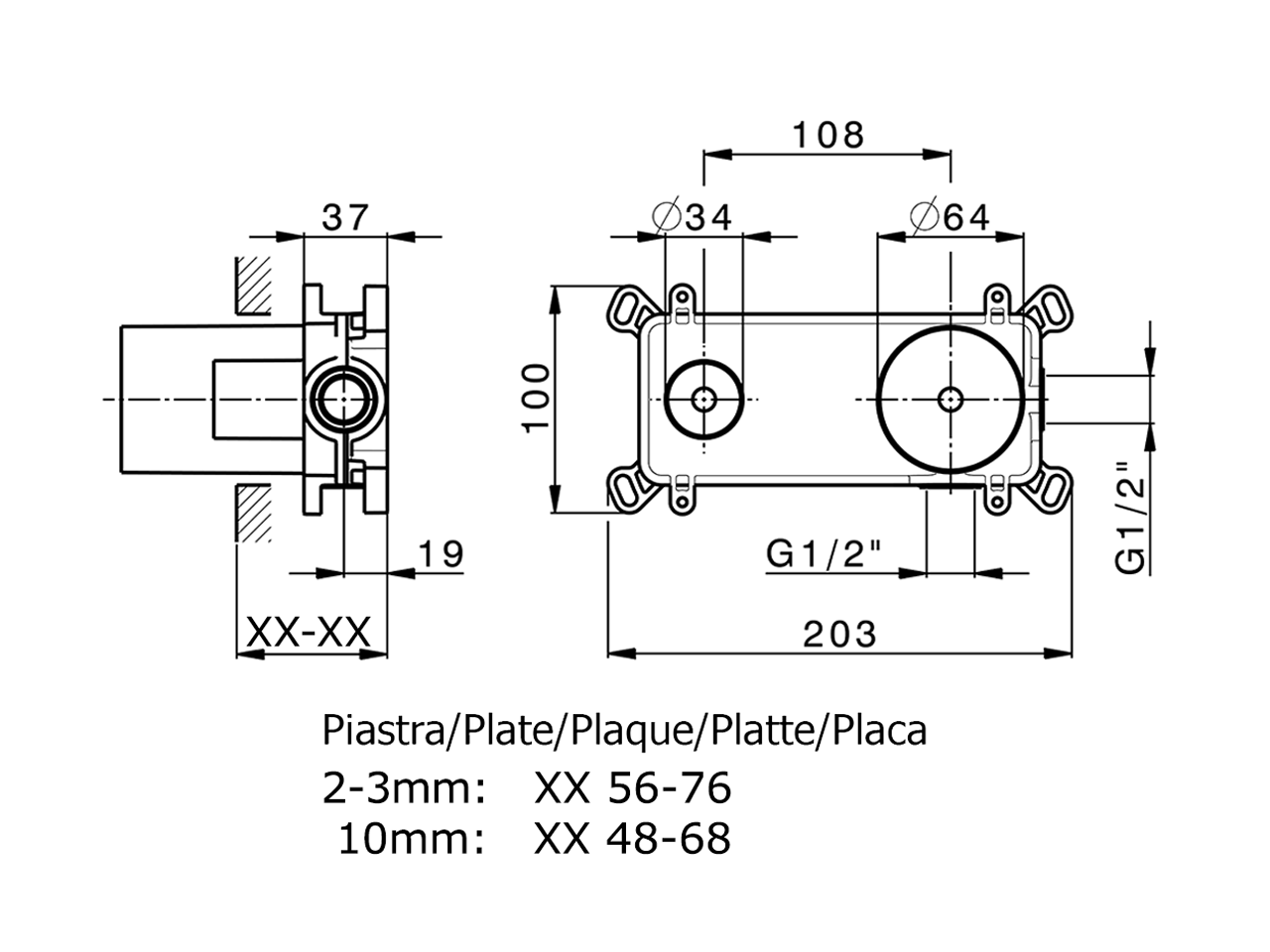

Files 2D
Files 3D
Instructions
Waterflow
ZB002450
Pressure Shower(l/min) Bath(l/min)
1 Bar 10.5 10.5
2 Bar 15 15
3 Bar 18.5 18.5
4 Bar 20.5 20.5
5 Bar 23 23
External Parts
External parts usable with current element
Design

HuberLab
