3-outlet Concealed thermostatic shower valve CONCEALED_ZB018200

Model

ZB018200

3-Outlet Concealed thermostatic mixer,with 3-outlet diverter,without trim kit

Available Finishings
3-outlet Concealed thermostatic shower valve CONCEALED_ZB018200 - v1
Technologies
DeviaStop

DeviaStop

The Huber Devia Stop technology allows to adjust the water flow and to direct it to the selected output point (overhead soaker, hand shower, etc).

Thermostatic

Thermostatic

The Huber thermostatic is your personal water manager, helping you to handle, control and save water and energy.

Characteristic

Installation: Concealed

Cartridge Spare Parts: 24.04A.PP

Cartridge Name: 8x20 Plus P Thermostatic Valve

Concealed: 1

Technical Specifications
ZB018200
3-outlet Concealed thermostatic shower valve CONCEALED_ZB018200 - v1

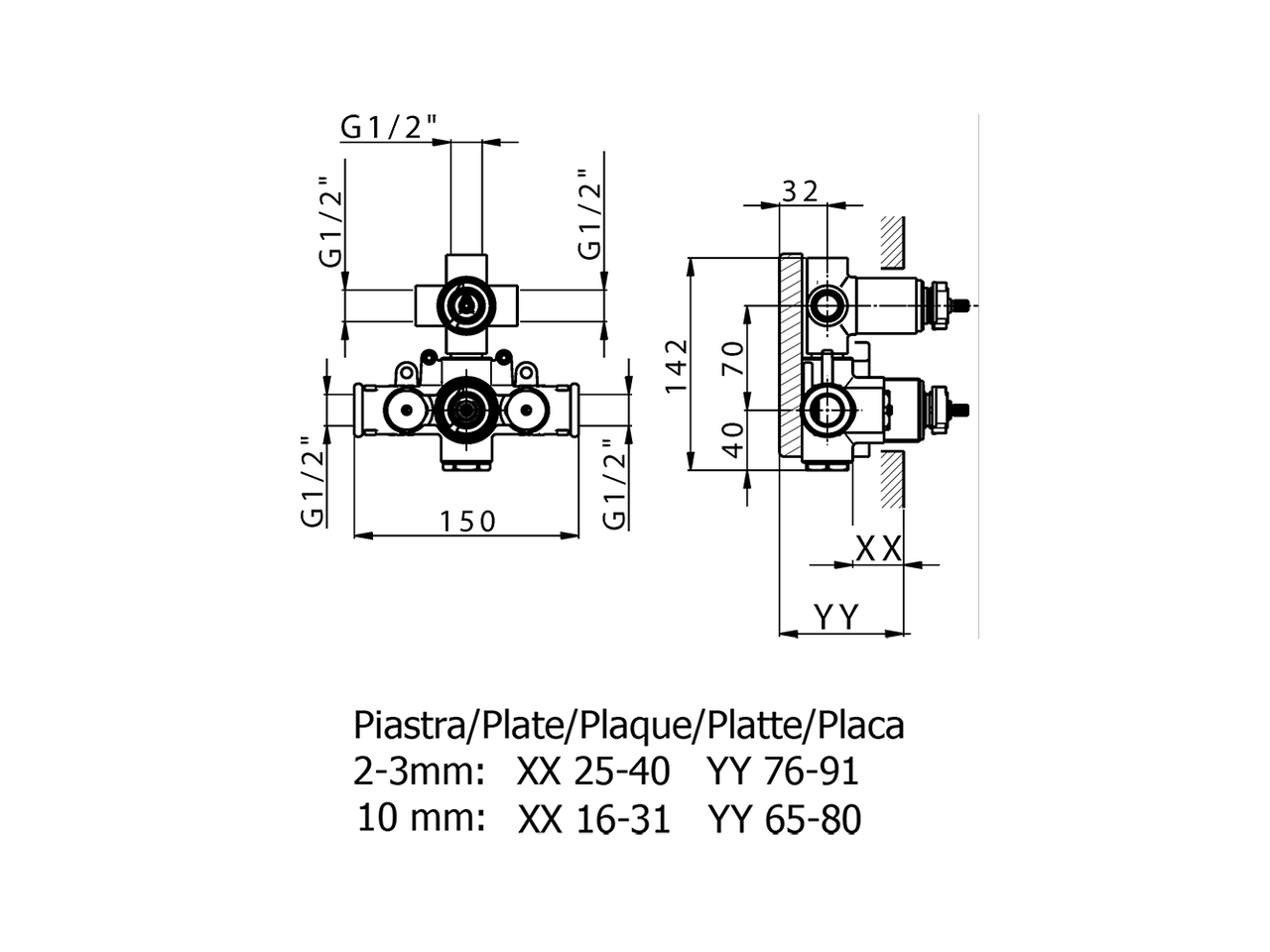

Files 2D
Instructions
Instructions
Instructions
Waterflow
ZB018200
Pressure Shower(l/min) Bath(l/min)
1 Bar 13 14
2 Bar 18 20
3 Bar 22 24
4 Bar 26 28
5 Bar 28 31
Design

HuberLab
