Single lever shower mixer H2_H2000443

Model

H2000443

Single lever shower mixer,without shower set,1/2" M flexible connection

Available Finishings
Single lever shower mixer H2_H2000443 - v1
Technologies
EcoStop

EcoStop

EcoStop feature limits water flow to approximately 50% of maximum output with one point of resistance on setting. Push slightly past the middle stop only when full water output is required. This will save water up to 50%.

Characteristic

Cartridge Spare Parts: ZZ95435000

Cartridge Name: 35 mm Cartridge

Technical Specifications
H2000443
Single lever shower mixer H2_H2000443 - v1

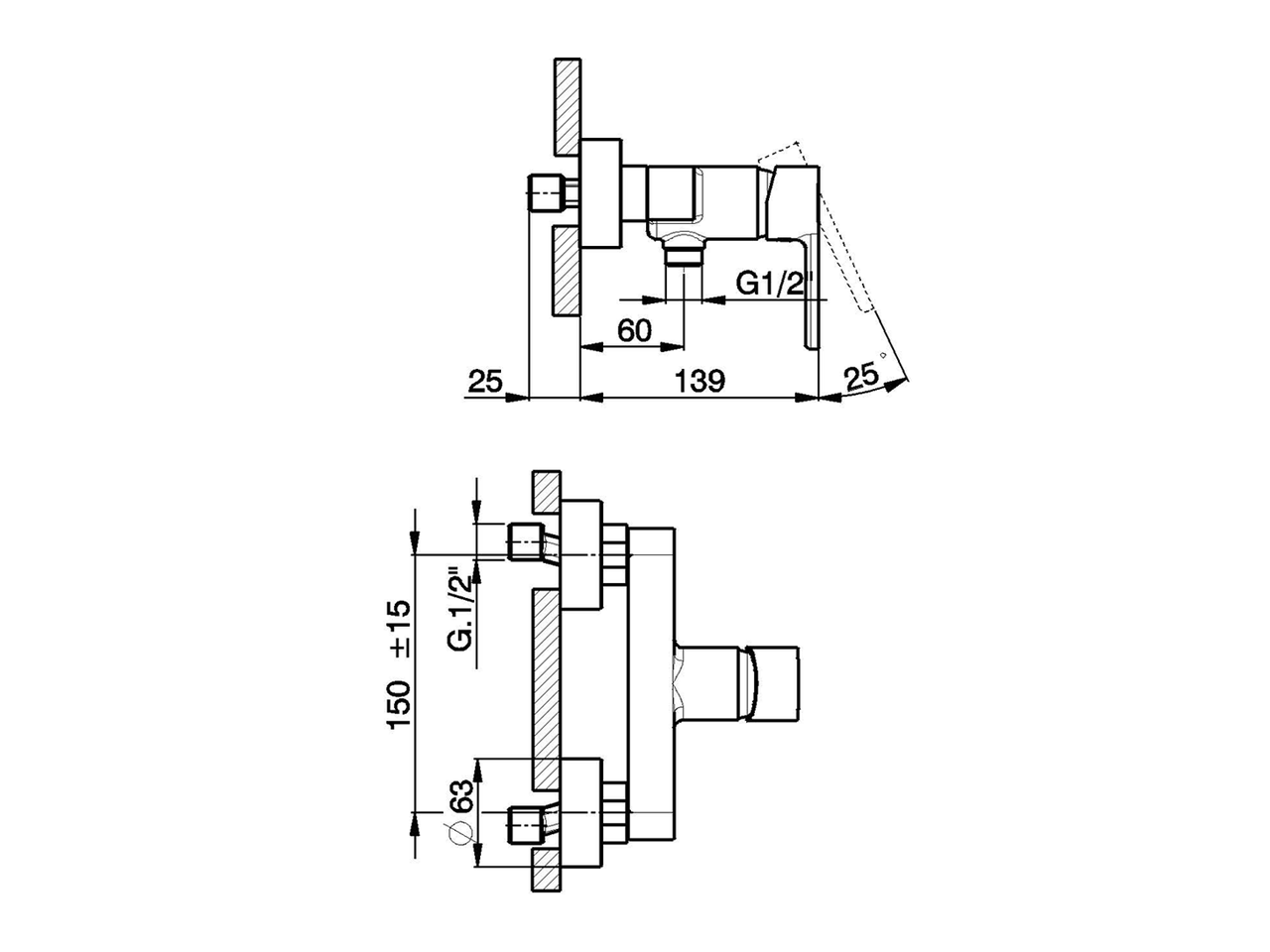

Files 2D
Files 3D
Spareparts
Instructions
Waterflow
H2000443
Pressure Water Mix(l/min)
1 Bar 14.4
2 Bar 20.6
3 Bar 25.4
4 Bar 29.3
5 Bar 32.8
Design

HuberLab
