Push&Shower

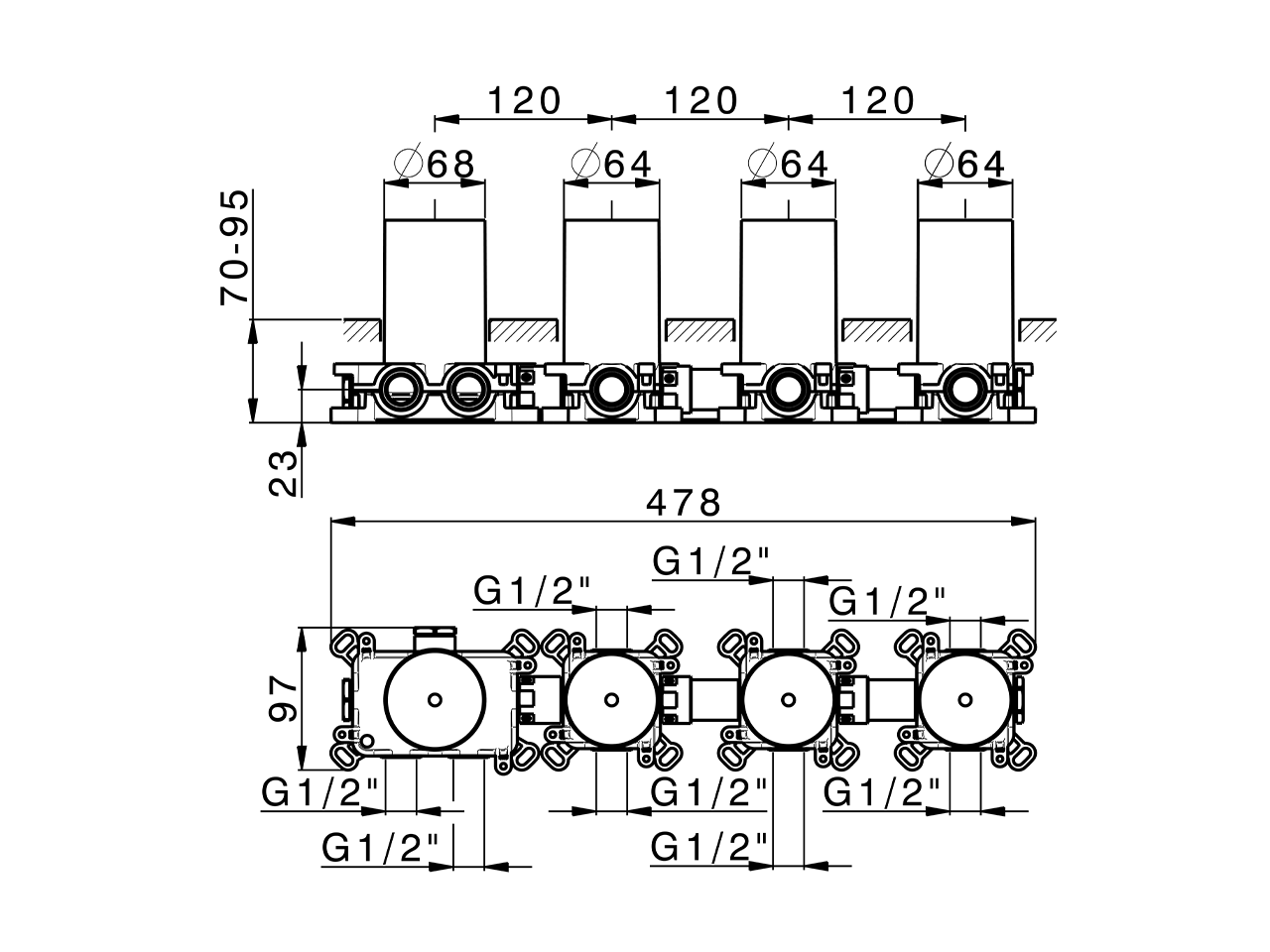

3 Function thermostatic concealed valve PUSH&SHOWER_ZB0G63R0
Model
ZB0G63R0
3 Function thermostatic concealed valve,ON/OFF button with flow rate regulation,with protection guard boxes,to match with exposed parts: 1 Thermo 3Push&Shower,without Thermo/Push&Shower exposed parts
Available Finishings
Technologies
Thermostatic
The Huber thermostatic is your personal water manager, helping you to handle, control and save water and energy.
Characteristic
Cartridge Spare Parts: 22.04A.AR - ZZ97279004
Cartridge Name: Argo 2 (long filter) Thermostatic Valve
Concealed: 1
Waterflow
ZB0G63R0
| Pressure | Water Mix 1(l/min) | Water Mix 2(l/min) | Water Mix 3(l/min) |
|---|---|---|---|
| 1 Bar | 11.2 | 11.2 | 11.2 |
| 2 Bar | 16.7 | 16.7 | 16.7 |
| 3 Bar | 20.6 | 20.6 | 20.6 |
| 4 Bar | 24 | 24 | 24 |
| 5 Bar | 26.7 | 26.7 | 26.7 |
